Rogers RO3003 PCB is an excellent choice for high-frequency applications that require low loss, high thermal conductivity, and excellent electrical properties.
Item NO.:
BIC-038-v199.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaColor:
WhiteShipping Port:
ShenzhenLead Time:
7-10 days

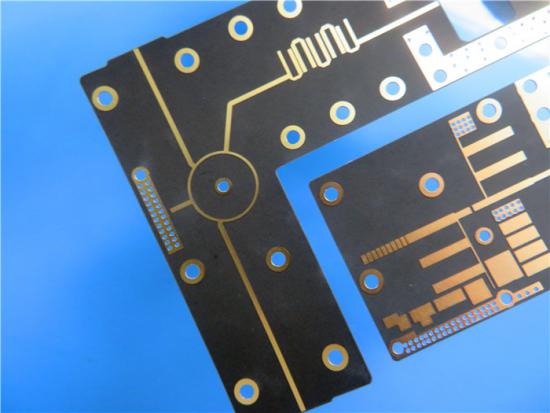

Rogers RO3003 Microwave PCB 2-Layer Rogers 3003 20mil Circuit Board DK3.0 DF 0.001 High Frequency PCB
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Rogers RO3003 PCB is a high-frequency material known for its excellent electrical properties, low loss, and high thermal conductivity. It is widely used in applications such as wireless communication systems, radar systems, satellite systems, and high-speed digital circuits.
One of the significant benefits of RO3003 is its low dielectric loss, making it ideal for high-frequency applications. It also has a low dissipation factor, high thermal conductivity, and excellent dimensional stability. The material's high glass transition temperature (Tg) also ensures its stability in high-temperature environments.
RO3003 substrate has a dielectric constant of 3.0 and a loss tangent of 0.0013 at 10 GHz, which is lower than other high-frequency PCB materials. It also has a low moisture absorption rate and excellent electrical and mechanical properties over a wide temperature range, from -55°C to 150°C.
The material's excellent properties make it an ideal choice for applications that require high-frequency performance and reliability, such as high-speed digital circuits, microwave devices, power amplifiers, and antennas.
Typical applications:
1) Automotive radar
2) Cellular telecommunications systems
3) Datalink on cable systems
4) Direct broadcast satellites
5) Global positioning satellite antennas
6) Patch antenna for wireless communications
7) Power amplifiers and antennas
8) Power backplanes
9) Remote meter readers
PCB Specifications
PCB SIZE | 90 x 75mm=1PCS |
BOARD TYPE | Double sided PCB |
Number of Layers | 2 layers |
Surface Mount Components | YES |
Through Hole Components | NO |
LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
RO3003 0.508mm | |
copper ------- 18um(0.5 oz) + plate BOT Layer | |
TECHNOLOGY | |
Minimum Trace and Space: | 5 mil / 5 mil |
Minimum / Maximum Holes: | 0.5mm |
Number of Different Holes: | 1 |
Number of Drill Holes: | 1 |
Number of Milled Slots: | 0 |
Number of Internal Cutouts: | 0 |
Impedance Control: | no |
Number of Gold finger: | 0 |
BOARD MATERIAL | |
Glass Epoxy: | RO3003 0.508mm |
Final foil external: | 1 oz |
Final foil internal: | N/A |
Final height of PCB: | 0.6 mm ±0.1 |
PLATING AND COATING | |
Surface Finish | Immersion gold (31%) |
Solder Mask Apply To: | NO |
Solder Mask Color: | N/A |
Solder Mask Type: | N/A |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | Top Side |
Colour of Component Legend | Black |
Manufacturer Name or Logo: | Marked on the board in a conductor and legend FREE AREA |
VIA | N/A |
FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" |
Board plating: | 0.0029" |
Drill tolerance: | 0.002" |
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
Data Sheet of Rogers 3003 (RO3003)
RO3003 Typical Value | |||||
Property | RO3003 | Direction | Units | Condition | Test Method |
Dielectric Constant,εProcess | 3.0±0.04 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 Clamped Stripline | |
Dielectric Constant,εDesign | 3 | Z | 8GHz to 40 GHz | Differential Phase Length Method | |
Dissipation Factor,tanδ | 0.001 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 | |
Thermal Coefficient of ε | -3 | Z | ppm/℃ | 10 GHz -50℃to 150℃ | IPC-TM-650 2.5.5.5 |
Dimensional Stability |
0.06 0.07 |
X Y |
mm/m | COND A | IPC-TM-650 2.2.4 |
Volume Resistivity | 107 | MΩ.cm | COND A | IPC 2.5.17.1 | |
Surface Resistivity | 107 | MΩ | COND A | IPC 2.5.17.1 | |
Tensile Modulus |
930 823 |
X Y |
MPa | 23℃ | ASTM D 638 |
Moisture Absorption | 0.04 | % | D48/50 | IPC-TM-650 2.6.2.1 | |
Specific Heat | 0.9 | j/g/k | Calculated | ||
Thermal Conductivity | 0.5 | W/M/K | 50℃ | ASTM D 5470 | |
Coefficient of Thermal Expansion (-55 to 288℃) |
17 16 25 |
X Y Z |
ppm/℃ | 23℃/50% RH | IPC-TM-650 2.4.4.1 |
Td | 500 | ℃TGA | ASTM D 3850 | ||
Density | 2.1 | gm/cm3 | 23℃ | ASTM D 792 | |
Copper Peel Stength | 12.7 | Ib/in. | 1oz,EDC After Solder Float | IPC-TM 2.4.8 | |
Flammability | V-0 | UL 94 | |||
Lead-free Process Compatible | Yes |
