Rogers RO3035 high frequency circuit materials are
ceramic-filled PTFE composites intended for use in commercial microwave and RF
applications.
Item NO.:
BIC-042-v191.0Order(MOQ):
1-10Payment:
T/TProduct Origin:
ChinaShipping Port:
ShenzhenLead Time:

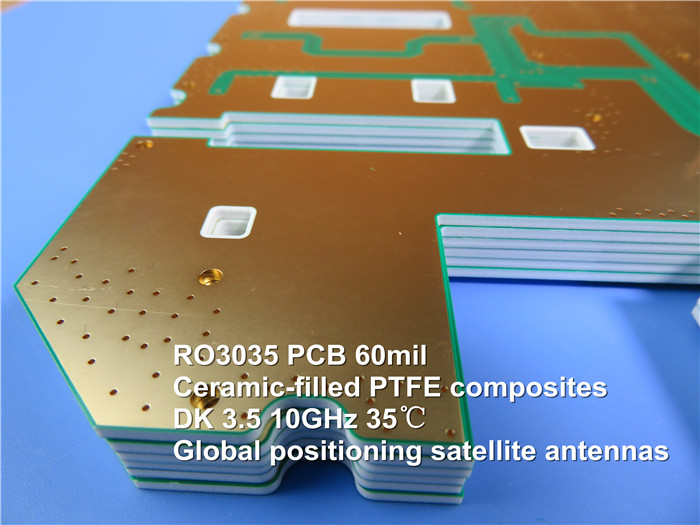

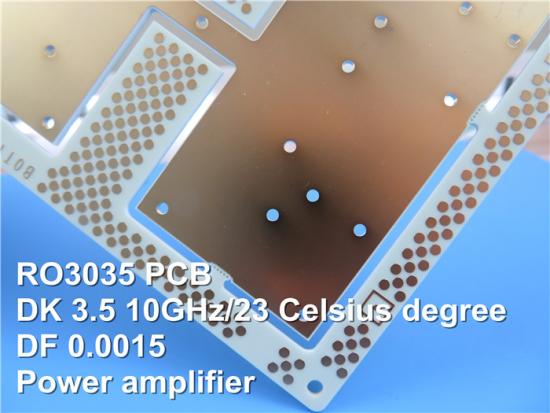

7-10 daysRogers RO3035 Microwave PCB 2-Layer Rogers 3035 20mil 0.508mm Circuit Board DK3.5 DF 0.0015 High Frequency PCB
(Printed Circuit Boards are custom-made products, the picture and parameters shown are just for reference)
Rogers RO3035 high frequency circuit materials are ceramic-filled PTFE composites intended for use in commercial microwave and RF applications. The high frequency Rogers RO3035 circuit material is made of PTFE composites filled with ceramic and is designed for RF and industrial microwave applications. It was created to offer amazing and aggressive costs while maintaining mechanical and electrical stability.
Regardless of the selected dielectric constant, they brag of circuit materials with uniform mechanical properties. This enables the designer to create multilayer board designs using various materials for each layer's dielectric constant without experiencing reliability or warpage problems.
The Rogers 3035 materials have extremely stable dielectric constants with respect to temperature. The materials utilized here have a 17 ppm/°C CTE (coefficient of thermal expansion) in both the X and Y axes. The copper coefficient is used to compare this one. As a result, there is less chance that the material would bow or twist and it can demonstrate excellent dimensional stability. Additionally, the risk of the thick metal cladding delaminating is eliminated by the expansion coefficient.
Typical applications:
1) Automotive radar
2) Cellular telecommunications systems
3) Datalink on cable systems
4) Direct broadcast satellites
5) Global positioning satellite antennas
6) Patch antenna for wireless communications
7) Power amplifiers and antennas
8) Power backplanes
9) Remote meter readers
The Rogers RO3035 has the following features and properties:
PCB Specifications
PCB SIZE | 77 x 65mm=1PCS |
BOARD TYPE | Double sided PCB |
Number of Layers | 2 layers |
Surface Mount Components | NO |
Through Hole Components | YES |
LAYER STACKUP | copper ------- 18um(0.5 oz)+plate TOP layer |
RO3035 0.508mm | |
copper ------- 18um(0.5 oz) + plate BOT Layer | |
TECHNOLOGY | |
Minimum Trace and Space: | 6 mil / 6 mil |
Minimum / Maximum Holes: | 0.4 mm / 5.0 mm |
Number of Different Holes: | 3 |
Number of Drill Holes: | 57 |
Number of Milled Slots: | 0 |
Number of Internal Cutouts: | 1 |
Impedance Control: | no |
Number of Gold finger: | 0 |
BOARD MATERIAL | |
Glass Epoxy: | RO3035 0.508mm |
Final foil external: | 1 oz |
Final foil internal: | N/A |
Final height of PCB: | 0.6 mm ±0.1 |
PLATING AND COATING | |
Surface Finish | Immersion gold |
Solder Mask Apply To: | N/A |
Solder Mask Color: | N/A |
Solder Mask Type: | N/A |
CONTOUR/CUTTING | Routing |
MARKING | |
Side of Component Legend | N/A |
Colour of Component Legend | N/A |
Manufacturer Name or Logo: | N/A |
VIA | Plated through hole(PTH), minimum size 0.4mm. |
FLAMIBILITY RATING | UL 94-V0 Approval MIN. |
DIMENSION TOLERANCE | |
Outline dimension: | 0.0059" |
Board plating: | 0.0029" |
Drill tolerance: | 0.002" |
TEST | 100% Electrical Test prior shipment |
TYPE OF ARTWORK TO BE SUPPLIED | email file, Gerber RS-274-X, PCBDOC etc |
SERVICE AREA | Worldwide, Globally. |
Data Sheet of Rogers 3035 (RO3035)
RO3035 Typical Value | |||||
Property | RO3035 | Direction | Units | Condition | Test Method |
Dielectric Constant,εProcess | 3.50±0.05 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 Clamped Stripline | |
Dielectric Constant,εDesign | 3.6 | Z | 8GHz to 40 GHz | Differential Phase Length Method | |
Dissipation Factor,tanδ | 0.0015 | Z | 10 GHz/23℃ | IPC-TM-650 2.5.5.5 | |
Thermal Coefficient of ε | -45 | Z | ppm/℃ | 10 GHz -50℃to 150℃ | IPC-TM-650 2.5.5.5 |
Dimensional Stability |
0.11 0.11 |
X Y |
mm/m | COND A | IPC-TM-650 2.2.4 |
Volume Resistivity | 107 | MΩ.cm | COND A | IPC 2.5.17.1 | |
Surface Resistivity | 107 | MΩ | COND A | IPC 2.5.17.1 | |
Tensile Modulus |
1025 1006 |
X Y |
MPa | 23℃ | ASTM D 638 |
Moisture Absorption | 0.04 | % | D48/50 | IPC-TM-650 2.6.2.1 | |
Specific Heat | j/g/k | Calculated | |||
Thermal Conductivity | 0.5 | W/M/K | 50℃ | ASTM D 5470 | |
Coefficient of Thermal Expansion (-55 to 288℃) |
17 17 24 |
X Y Z |
ppm/℃ | 23℃/50% RH | IPC-TM-650 2.4.4.1 |
Td | 500 | ℃TGA | ASTM D 3850 | ||
Density | 2.1 | gm/cm3 | 23℃ | ASTM D 792 | |
Copper Peel Stength | 10.2 | Ib/in. | 1oz,EDC After Solder Float | IPC-TM 2.4.8 | |
Flammability | V-0 | UL 94 | |||
Lead-free Process Compatible | Yes |
