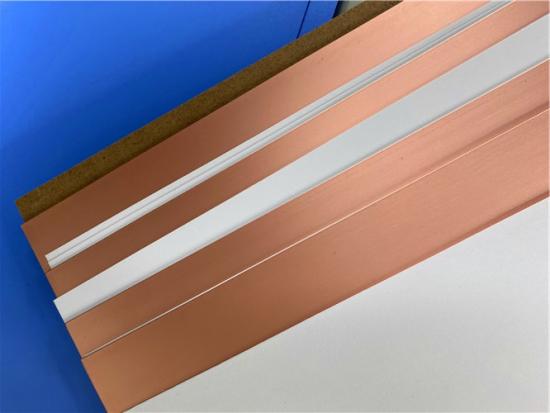

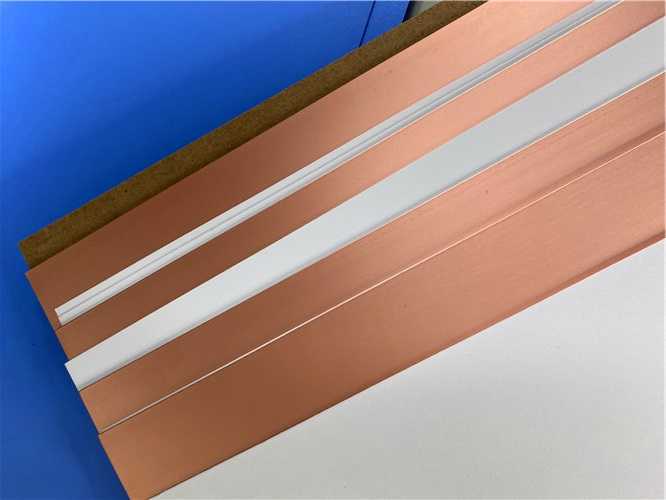

Taconic TLX-9 DK2.5PTFE/Woven Glass High Frequency Laminate
Product Overview
Crafted by Taconic, a pioneer with more than 35 years of expertise in coating fiberglass fabric with polytetrafluoroethylene (PTFE), Taconic TLX-9 is a high-performance copper clad PTFE/woven glass laminate. It stands out for its ultra-precise dielectric property control—boasting a fixed dielectric constant (Dk) of 2.50 with a tight tolerance of±0.04, and an extremely low dissipation factor of 0.0019 at 10 GHz.
Engineered for dimensional stability and moisture resistance, TLX-9 laminate shows virtually no moisture absorption during manufacturing processes, ensuring consistent performance across production workflows. It is machinable with standard processing methods for PTFE/woven fiberglass materials, supporting shearing, drilling, milling, and plating operations with ease. Typically clad with 1/2, 1, or 2 oz electrodeposited copper (single or double side), custom cladding options are also available upon request. All TLX-9 substrate shipments are accompanied by a Certificate of Compliance with actual test data, all tested in accordance with the IPC-TM 650 standard.
TLX-9 DK2.5 PCB substrate is tailored for high-frequency and microwave RF applications, delivering reliable electrical, mechanical, and thermal performance in demanding scenarios such as radar systems, phased array antennas, mobile communication systems, microwave test equipment, transmission devices, and various RF passive/active components. Its UL 94 V-0 flammability rating further enhances its safety and suitability for industrial and aerospace-grade electronic designs.
TLX-9 Typical Performance Values
|
Property
|
Test Method
|
Imperial Unit
|
Value (Imperial)
|
Metric Unit
|
Value (Metric)
|
|
Dielectric Constant @ 10 GHz
|
IPC-TM 650 2.5.5.5
|
-
|
2.5
|
-
|
2.5
|
|
Dissipation Factor @ 10 GHz
|
IPC-TM 650 2.5.5.5
|
-
|
0.0019
|
-
|
0.0019
|
|
Moisture Absorption
|
IPC-TM 650 2.6.2.1
|
%
|
<0.02
|
%
|
<0.02
|
|
Dielectric Breakdown
|
IPC-TM 650 2.5.6
|
kV
|
>60
|
kV
|
>60
|
|
Volume Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm/cm
|
10⁷
|
Mohm/cm
|
10⁷
|
|
Surface Resistivity
|
IPC-TM 650 2.5.17.1
|
Mohm
|
10⁷
|
Mohm
|
10⁷
|
|
Arc Resistance
|
IPC-TM 650 2.5.1
|
seconds
|
>180
|
seconds
|
>180
|
|
Flexural Strength (Lengthwise)
|
IPC-TM 650 2.4.4
|
lbs./in.
|
>23,000
|
N/mm²
|
>159
|
|
Flexural Strength (Crosswise)
|
IPC-TM 650 2.4.4
|
lbs./in.
|
>19,000
|
N/mm²
|
>131
|
|
Peel Strength (1oz copper)
|
IPC-TM 650 2.4.8
|
lbs./linear in.
|
12
|
N/mm
|
2.1
|
|
Thermal Conductivity
|
ASTM F 433
|
-
|
-
|
W/m/K
|
0.19
|
|
x-y CTE
|
ASTM D 3386 (TMA)
|
-
|
-
|
ppm/°C
|
9月12日
|
|
z CTE
|
ASTM D 3386 (TMA)
|
-
|
-
|
ppm/°C
|
130-145
|
|
UL-94 Flammability Rating
|
UL-94
|
-
|
V-0
|
-
|
V-0
|
Ordering Specifications for TLX-9
Dielectric Thickness Options
TLX-9 high frequency laminate features a dielectric constant of 2.50±0.04 with the following thickness ranges (custom thickness available on request):
|
Thickness Range (Imperial)
|
Thickness Range (Metric)
|
|
0.0050'' - 0.0190''
|
0.13mm – 0.48mm
|
|
0.0200'' - 0.0300''
|
0.50mm – 0.76mm
|
|
≥ 0.0310''
|
≥ 0.78mm
|
Standard Electrodeposited Copper Cladding
TLX-9 can be ordered with single or double-sided copper cladding; standard options are as follows:
|
Cladding Designation
|
Copper Weight
|
Thickness (Imperial)
|
Thickness (Metric)
|
|
CH
|
1/2 oz./sq. ft.
|
~0.0007''
|
~18 μm
|
|
C1
|
1 oz./sq. ft.
|
~0.0014''
|
~35 μm
|
|
C2
|
2 oz./sq. ft.
|
~0.0028''
|
~70 μm
|
Standard Panel Sizes
Default sheet size: 36” x 48” (914mm x 1220mm); pre-cut panel options (custom cutting available):
|
Pre-cut Size (Imperial)
|
Pre-cut Size (Metric)
|
|
12'' x 18''
|
304mm x 457mm
|
|
16'' x 18''
|
406mm x 457mm
|
|
18'' x 24''
|
457mm x 610mm
|
|
16'' x 36''
|
406mm x 914mm
|
|
24'' x 36''
|
610mm x 914mm
|
|
18'' x 48''
|
457mm x 1220mm
|
Part Number Example
-
Imperial: TLX-9-0310-CH/CH-18'' x 24''
-
Metric: TLX-9-0310-CH/CH-457mm x 610mm
Interpretation: TLX-9 grade + 0.0310'' dielectric thickness + double-sided CH (1/2 oz) copper cladding + 18''x24'' (457mmx610mm) panel size
Core Advantages & Application Highlight
Key Competitive Strengths
-
Ultra-stable high-frequency performance: Tightly controlled Dk (2.50±0.04) and ultra-low Df (0.0019@10GHz) minimize signal loss in high-frequency circuits
-
Superior environmental resistance: Moisture absorption <0.02% ensures performance consistency in humid manufacturing/operating environments
-
Robust mechanical properties: High flexural and peel strength enable reliable processing and long-term structural stability
-
Safe & compliant: UL 94 V-0 flammability rating and full IPC-TM 650 testing with compliance certification
-
Versatile processability: Machinable with standard PTFE/fiberglass fabrication methods, flexible cladding/size options
Target Application Fields
-
Radar systems & phased array antennas (military/aerospace/telecom)
-
Mobile communication & PCS/PCN large format antennas
-
High power RF amplifiers & low noise amplifiers (LNAs/LNBs/LNCs)
-
Microwave test equipment & transmission devices
-
High-frequency passive RF components (filters, couplers, resonators)
